Tito’s Top Secret Underground Airbase Zeljava

Given that Zeljava is a huge complex of underground and overground military facilities, it has been quite a challenge to write an article about it. Therefore, in this article, I will try to present the most important information about the Airbase Zeljava.

Zeljava is the largest underground military airport of the former Yugoslav People´s Army (JNA), and it is also one of the largest underground airports in Europe. It is located on the border of the two countries, Bosnia and Herzegovina and Croatia, near the town of Bihac. Hence, it was also known as the Bihac airport.

The airport has been fully operating from 1968 until 1992, when it was destroyed during the withdrawal of the JNA by activating explosives. The Socialist Federal Republic of Yugoslavia (SFRJ) invested approximately $6 billion in its construction. In the end, only ruins remained. Potential endeavors to reconstruct the airbase are limited by a lack of financial resources.

Strategic role

Zeljava airfield
Located deep in the territory of Yugoslavia

The main advantage of the airbase was its strategic location; it was located deep in the territory of Yugoslavia and equidistant from the most important targets and facilities. The main purpose of the airbase was defense and distraction of potential aggressors on the former Republic. Consequently, it has always been in the interest of foreign secret agencies. That was proven nowadays by declassifying the records of the CIA spy satellites, which have been monitoring the construction of this object from the orbit for years.

Construction and tactical-technical characteristics

underground facilities
The airbase was built in the period from 1954 – 1968. It was built under a veil of secrecy, as well as all former Yugoslavia’s cold war facilities of special purpose.

The airbase was built in the period from 1954 – 1968. It was built under a veil of secrecy, as well as all former Yugoslavia’s cold war facilities of special purpose.

The Airbase Zeljava consisted of:

  • underground object Klek, code name Object 505
  • five runways
  • a barrack
  • a radar at the top of Pjesevica Mountain
  • 34 other buildings
Airbase Zeljava

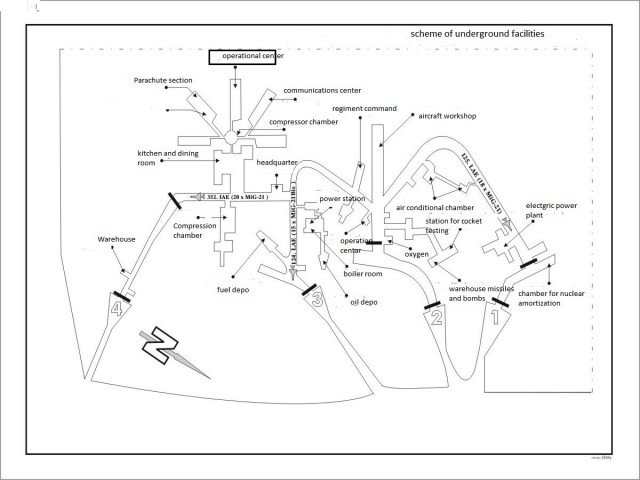

The Klek underground facility has three galleries interconnected with tunnels shaped in the form of the letter M. Three aircraft squadrons (60 aircrafts of type MiG 21) were located in these galleries. The Profile Gallery was in the form of the MiG 21 plane. They were 15 to 16 meters wide and 8 to 12 meters high. The total length of the underground tunnels (galleries and utility rooms) amounts to about 3.500 meters.

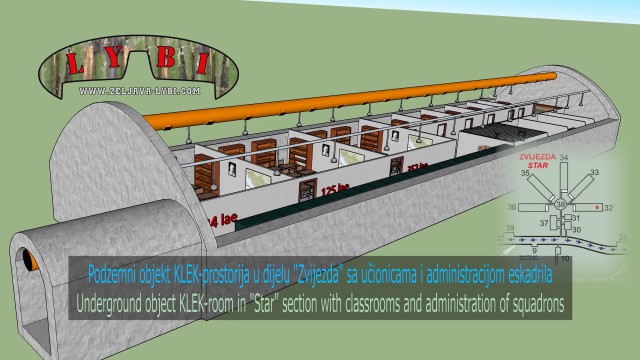

Besides the gallery, Klek facility contained: communications center, operational center, control tower, missiles and bombs storage, fuel tanks, power facilities, air conditioning, classrooms, etc. It also haused a mass hall that could feed up to 1000 people simultaneously, along with food, fuel and arms to last for 30 days without resupply. The fuel supply was carried out through an underground pipe network that started from the military warehouse on the Pokoj hill near Bihac and had the total length of 20 kilometers.

Out of harms way

The complex of underground tunnels and galleries was divided by 56 armored doors, and it had 4 entrances. The dimensions and the weight of the doors were truly impressive; three doors were 60 cm thick with a width of 20 m and height of 4 m, weighing 100 tons and running on electricity, while the fourth door worked on hydraulic principle, with a thickness of 80 cm, width of 20 m and height of 9 m. Available data suggest that the Klek facility could withstand an impact of max strength of 20 kilotons.

Three units were based there: 124.LAE (Fighter Aviation Squadron), 125.LAE and 352.IAE (Reconnaissance Aviation Squadron). The first two were equipped with MiG-21bis fighter aircraft and the third one was equipped with MiG-21-R reconnaissance-fighter aircraft.

Surface facilities

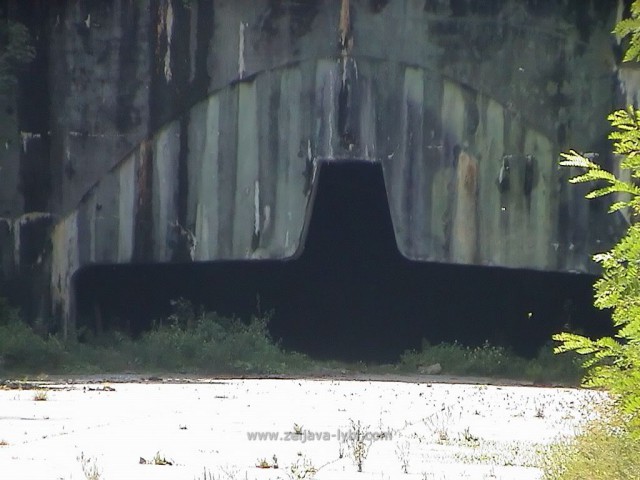

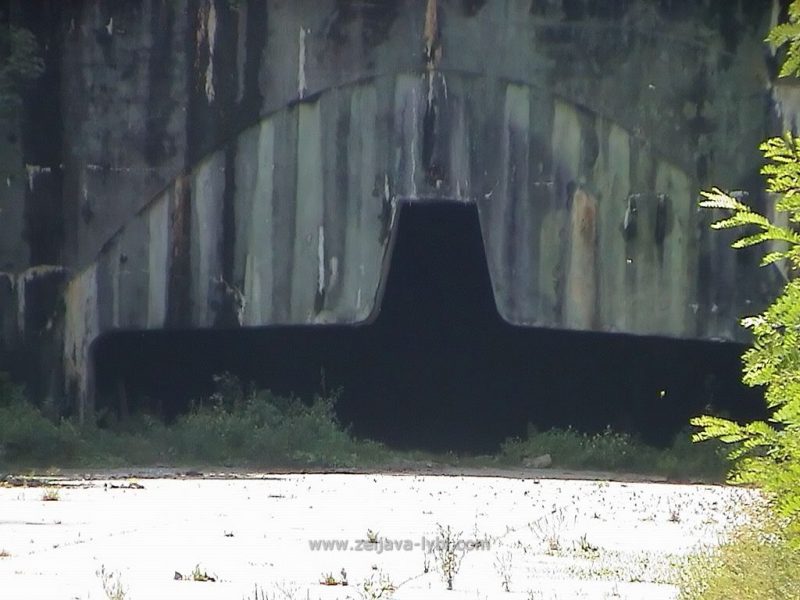

You can tell this bunker was designed just for aircraft

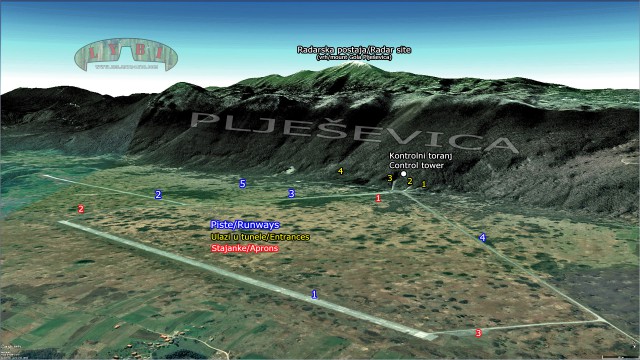

The Airbase Zeljava included several external facilities. Among them were five runways, barracks situated 3 km away from the base, garages, workshops, and other buildings. Radar station and communications center were located at the top of the Pljesevica Mountain. The warehouse containing rockets and bombs was located in Vedro polje.

Very effective missile interceptor

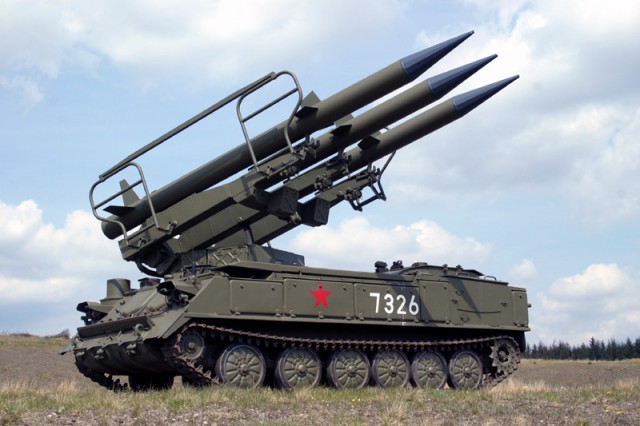

Air defense consisted of three squadrons of aircrafts, numerous short-range mobile tracking and targeting radars, missile-equipped sites, 2K12 „kub“ (NATO; SA-6) mobile surface-to-air missile interceptor system, motorized infantry bases, military police station, etc.

Destruction of the complex

The Airbase Zeljava was in a difficult situation at the beginning of the outbreak of war in Bosnia and Herzegovina. The top army leader of Yugoslav People’s Army made a decision on dislocation of aircrafts, equipment, units, and civilians affected by war threats to a location in Serbia. All that was left in the base should have been mined and permanently disabled. The whole complex was mined and extremely damaged with more than 50 tons of explosives on May 16th 1992.

A facility for asylum seekers was scheduled to open in 2004 or 2005, but the idea was abandoned.

Nowadays, in the post-war period, this location known as „holes“ among the former and current residents of this region gradually reveals its secrets to the curious researchers of artificial underground areas.
